Conductivity

EMCO Conductivity Analyzers เป็นการวัดความแม่นยำสูงด้วยการวัดแบบการนำไฟฟ้า (Conductivities) ด้วยการออกแบบให้มีความยืดหยุ่นสูงของเซ็นเซอร์เพื่อให้เหมาะกับความต้องการของลูกค้า เหมาะกับการใช้งานในอุตสาหกรรม เช่น โรงงานพลังงาน, ยา, กระดาษ, อาหารและแปรรูป

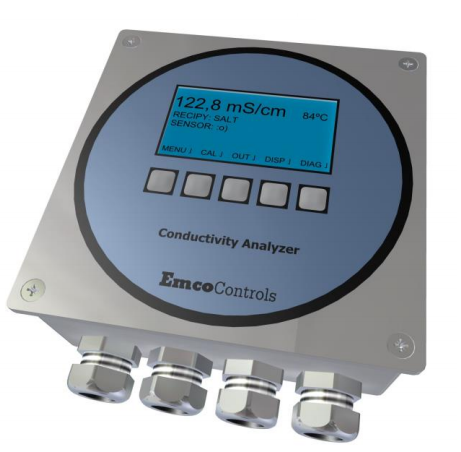

EMCO Conductivity Analyzer type 560 – for low and high conductivities

conductivity analyzer

Specifications

Material, housing : AISI 316L
Outputs : dual 4-20mA, user selectable
Alarm : dual relays & mA signalling (23.5 mA)
Measuring range : full auto range 50 nS/cm – 1.500 mS/cm
Temperature range : -35°C – +240°C, Pt1000 & Pt100
Display : Backlit Dot matrix
Dimensions : 144*144 mm mounting, for panel, wall & pipe
Line powered : 65-265 Vac, 4 VA or 18-36 V DC
Sensor connection : 9 pole screw-in
Built in recipes : weak lye, weak acids, UPW & salt
Direct access to : Trend, diagnostic, setup menu
Optional : HART, Profibus , Fieldbus
Download : EN


 Sensors for industrial use

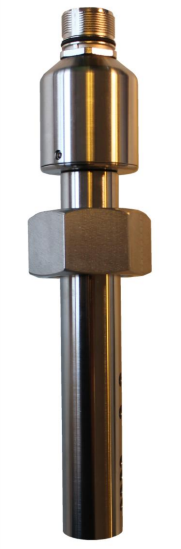

EMCO Conductivity Sensor type 611 – internal electrodes for narrow tubes

Conductivity Sensor type 611Specifications

Measuring range : 200 nS/cm to 1000 mS/cm
Material electrodes : AISI 316 or on request
Material electrode holder : PTFE
Material sensor body : AISI 316 or on request
Pressure : Max 30 bar-g, or on request
Temperature : Max 200°C,
Temperature element : Pt1000 Class A
Protection class : IP 65
Download : EN

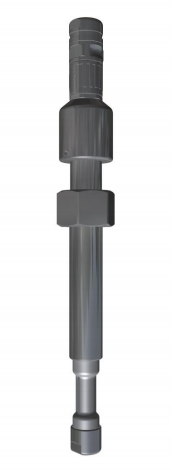

EMCO Conductivity Sensor type 621 – external electrodes for larger tubes and tanks

EMCO Conductivity Sensor type 621

Specifications

Measuring range : 200 nS/cm to 1000 mS/cm
Material electrodes : AISI 316
Material electrode holder : PTFE
Material sensor body : AISI 316
Pressure : Max 30 bar-g, or on request
Temperature : Max 200°C
Temperature element :Pt1000 Class A
Protection class : IP 65
Download : EN




Sensors for sanitary use

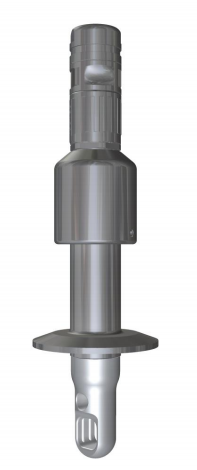

EMCO Conductivity Sensor type 613 – Internal electrodes – 2” ISO 2852 flange for clamp connection

613Specifications

Measuring range : 500 nS/cm to 200 mS/cm
Material electrodes : AISI 316 or on request
Material electrode holder : PVDF
Material sensor body : AISI 316
Pressure : Max10 bar-g
Temperature : Max 130C
Temperature element : Pt1000 Class A
Protection class : IP 65
DownlandEN
 dsadas
 dasd

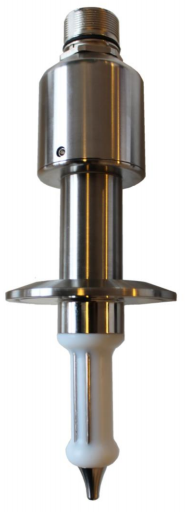

EMCO Conductivity Sensor type 623 – external electrodes 2” ISO 2852 flange for clamp connection

ENSpecifications

Measuring range : 55 nS/cm to 20 mS/cm
Material electrodes : AISI 316 or on request
Material electrode holder : PTFE
Material sensor body : AISI 316
Pressure : Max 12 bar-g.
Temperature : Max 160
Temperature element : Pt1000 Class A
Protection class : IP 65
DownloadEN
