Pt100 Temperature Sensor Series DC With Fixed RTD Element and Clamp Connection

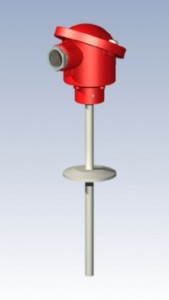

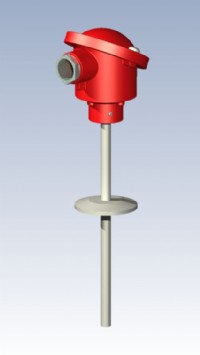

copy_dc3d

Principle

EMCO temperature sensors series DC เหมาะสำหรับใช้งานการวัดอุณหภูมิในอุตสาหกรรมทั้งงานเหล็ก, โรงงานไฟฟ้า, โรงงานเคมีและปิโตรเคมี, ยาและอุตสาหกรรมอาหาร, โรงงานปูนซีเมนต์

Construction

Sensor ประกอบด้วย Plate ทำจาก Ceramic และ แผ่น Film ทำจาก Platinum. ตัวต้านทานไฟฟ้าเปลี่ยนแปลงค่าตามอุณหภูมิ โดยความต้านทานที่ 100 ohm ที่ 0°C ตอบสนองได้รวดเร็วและไม่มีผลกระทบกับการสั่นสะเทือน

Connecting Head : Type B ตามมาตราฐาน DIN 43729
มาตราฐานของอลูมิเนียม (aluminium) IP 55,
เพิ่มเติมเหล็กกล้าไร้สนิม (stainless steel) IP 65,
ฝาเกลียวทำจากพลาสติก (plastic) หรืออลูมิเนียม (aluminium)
Sensor : Pt100 มาตราฐาน IEC 751
No. of sensors : 1 หรือ 2
Well OD : 8 mm
Well material : Stainless steel AISI 316Ti (1.4571)
Process connection : OD 38 or OD 51 dairy clamp.
Accessories : Temperature transmitter 2 wire 4-20 mA,
HART communication, Profibus PA, Foundation fieldbus EEx ia IIC T4/T6 for hazardous areas

Technical Data

Max. working pressure : 50 bar
Max fluid velocity : ก๊าซ 25 m/s, ของเหลว 3 m/s
Temperature range : – 50 ถึง 400°C.
Accuracy : ± 0,3
Electrical connection : PG 16 ใช้สำหรับ type B และ หัวเป็นพลาสติก (plastic) , PG 16, M20, ½”NPT ใช้สำหรับ stainless steel และ หัวฝาเกลียวเป็นอลูมิเนียม (aluminium)

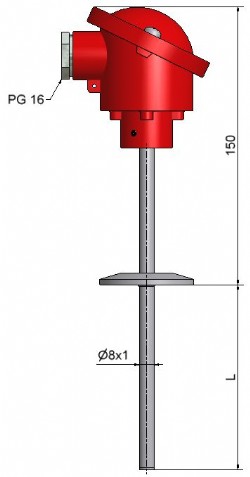

copy_dcdim
